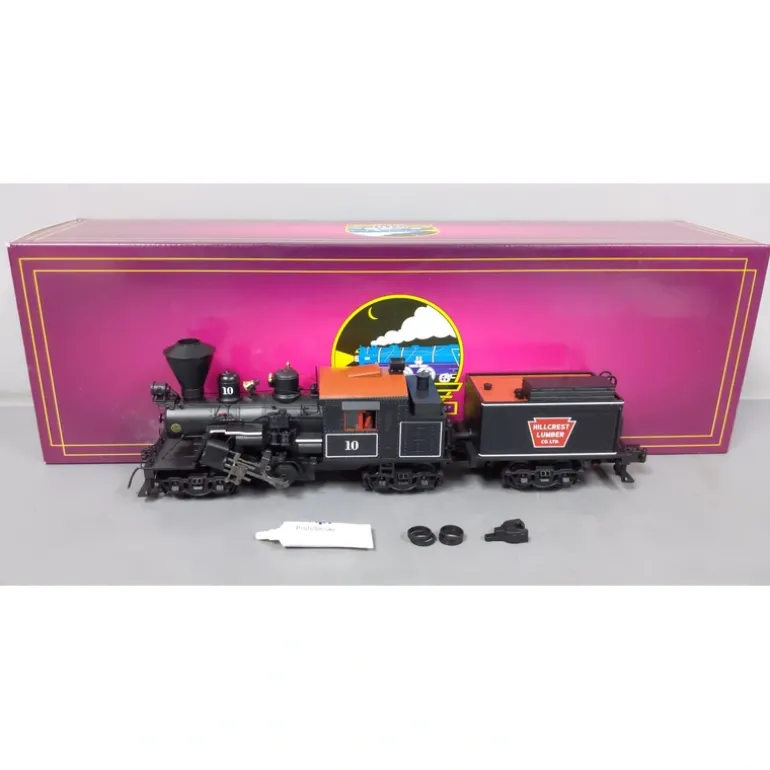

This is MTH 20-3443-1 O Hillcrest Lumber Climax #10 with ProtoSounds 3.0. This one is the Highrail version for 3-rail track. Many of these locomotives were still operating well into the 1960s and are fondly remembered as one of the most exciting locomotives to watch.The Climax Steam Engine differed dramatically from the conventional rod-driven steam locomotive in that it was driven by a crankshaft that powered the trucks with a network of gears. The Climax bore little resemblance to other steam power. Geared engines like the Climax negotiated grades of up to 10% rather easily, and could hold the rail on track that routinely derailed many conventional locomotives. Working far from the shops, as it generally did, the Climax was rugged and easy to maintain, enduring incredible strain as it negotiated tough routes.
Its key features are:
Die-cast boiler and tender body
1:48 scale proportions
Die-cast metal chassis
Metal wheels and axles
Constant voltage headlight
Die-cast truck sides
Precision flywheel equipped motor
Locomotive speed control in scale MPH increments
Remote controlled Proto-Coupler
Engineer and fireman figures
Metal handrails and decorative bell
Decorative metal whistle
Lighted cab interior
Synchronized puffing ProtoSmoke system
Operating locomotive back-up light
Built-in DCC receiver
Proto-Sound 3.0 with The Digital Command System featuring:- freight yard Proto-Effects
Unit measures: 13 x 2 1/2 x 4 1/4
Operates on O-42 curves
Proto-Sound 3.0 equipped locomotives can be controlled in command mode with any DCC compliant command control system. While the user won’t have access to all of the incredible features of Proto-Sound 3.0, independent control over the locomotive is possible. This means you can continue to use your existing DCC controller to independently control your other DCC equipped locomotives in addition to your Proto-Sound 3.0 locomotive on the same track at the same time.
When using a DCC controller, the following Proto-Sound 3.0 locomotive features are accessible:
(F0) Headlight on/off
(F1) Bell on/off
(F2) Whistle/Horn on/off
(F3) Start-up/Shut-down
(F4) PFA initiate and advance
(F5) Cab light on/off
(F6) Engine sounds on/off
(F7) Volume low, med, high, off
(F8) Smoke on/off
(F9) Forward signal sound
(F10) Reverse signal sound
(F11) Coupler slack sound
(F12) Grade crossing
(F13) One-shot Doppler on/off
(F14) Extended start up
(F15) Extended shut down
(F16) Labor chuff
(F17) Drift chuff
(F18) Smoke volume low, med, high
(F19) Single short whistle toot
(F20) Coupler close
(F21) Feature reset
(F22) Idle sequence 1
(F23) Idle sequence 2
(F24) Idle sequence 3
(F25) Idle sequence 4
(F26) Brakes auto/off
(F27) Cab chatter auto/off
(F28) Clickety-clack auto/off
Condition: Factory New (C-9)
Operational Status: Functional
Original Box: Yes (P-9)
Manufacturer: MTH
Model Number: 20-3443-1
Road Name: Hill Crest Lumber Company
Scale/Era: O Modern
Model Type: Diesel Loco
The Trainz SKU for this item is P11636652.
Trainz Product Id: 11636652
